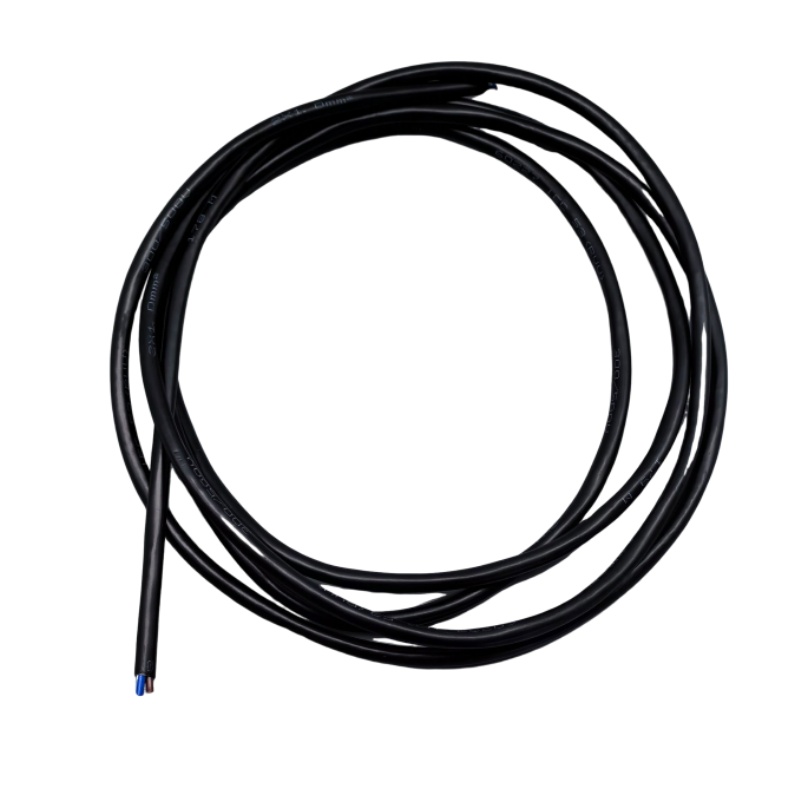

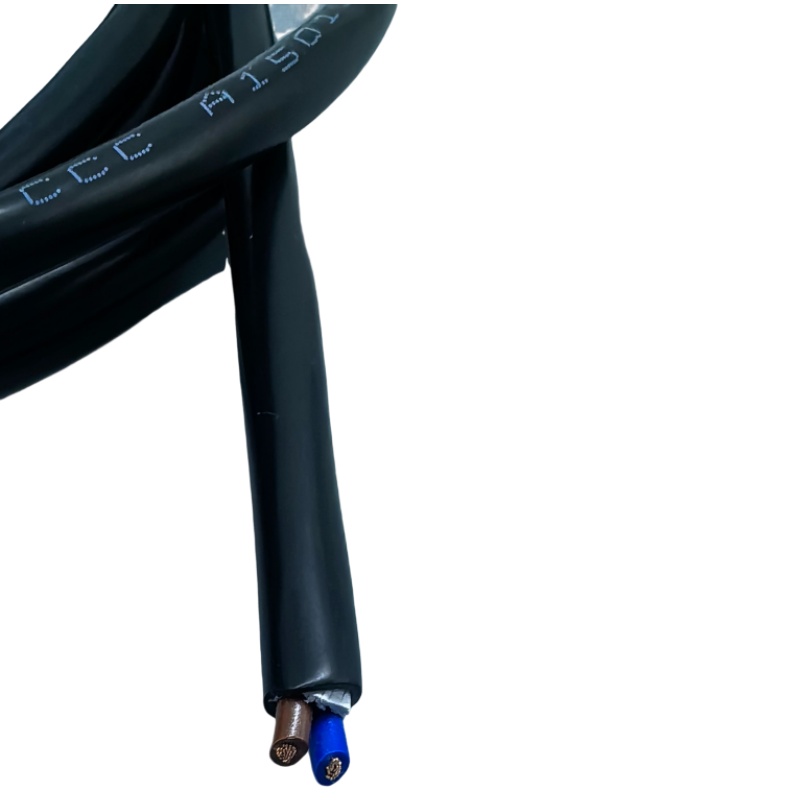

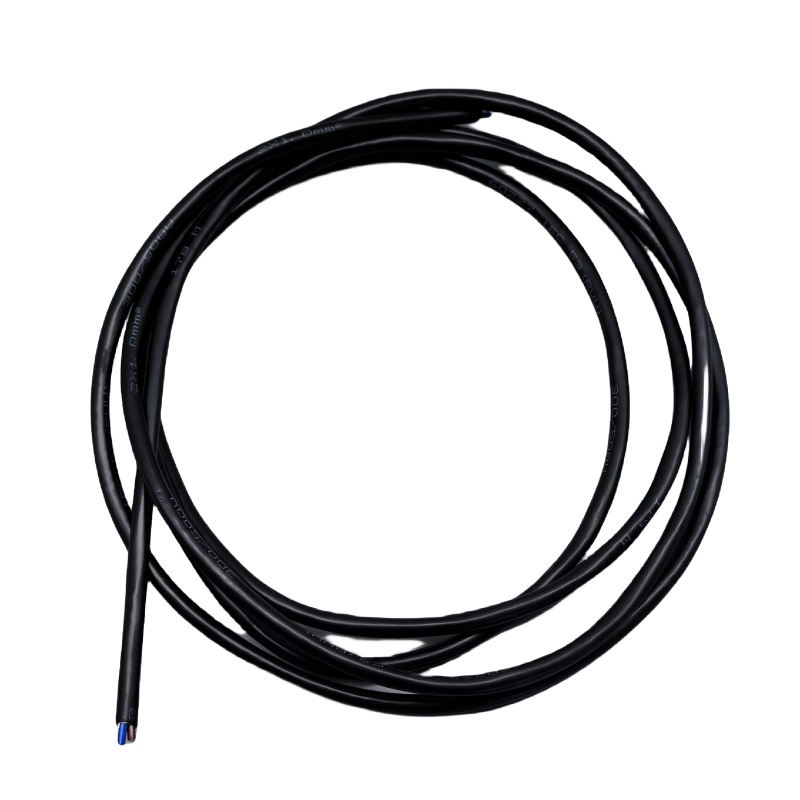

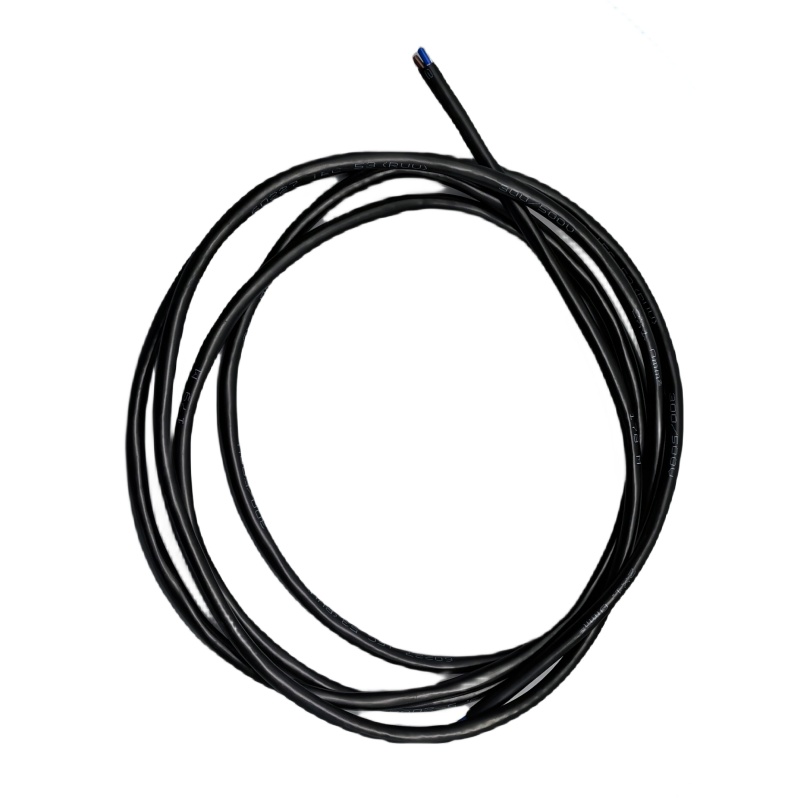

Flexible Cable with 0.20±0.01 mm Conductor Diameter and Low Smoke Halogen Free Sheath

Name: Flexible Cable with 020001 mm Conductor Diameter and Low Smoke Halogen Free Sheath
Brand: OEM or Fibconet
Price: 0.50 USD

China Flexible Cable with 0.20±0.01 mm Conductor Diameter and Low Smoke Halogen Free Sheath wholesale

Model Number : PVC insulated cable

Type : PVC insulated cable

Place of Origin : Zhejiang, China

Brand Name : OEM or Fibconet

Number of Conductors : 4

Product Name : EG657.B3 Easy-to-patch-wall Patch cord

Model Specification : RVV2*1.0mm²

Product standard : Refer to GB/T 5023.5-2008

Conductor Material : Oxygen Free Copper Wire

Conductor Diameter : 0.20±0.01 mm

Number of strands : 32±1 Roots

Insulation Material : Polyvinyl Chloride PVC

Colour : Blue, black, yellow (colour spectrum can be ordered)

Average thickness of insulation : 0.7±0.1mm

Insulation core wire outer diameter : 2.7±0.2 mm

MOQ : 100 kilometers

Price : $0.50/kilometers 100-999 kilometers

Contact Now

FTTH Stretch Drop Fibre Optic Cable Stretch Resistant EG657.B3 Easy-to-patch-wall Patch cord Pigtail with Connector

Flexible Cable with 0.20±0.01 mm Conductor Diameter and Low Smoke Halogen Free Sheath

Product Specification

RVV2*1.0mm² copper core PVC insulated low smoke halogen free sheathed flexible cable

Environment Indoor

Standard GB/T 5023.5-2008 Polyvinyl chloride insulated flexible cable with rated voltage 450 750V and below.

Conductor Annealed soft oxygen-free copper, solid copper conductor conforming to the requirements of GB/T3953-1983 for TR-type soft round copper wires, elongation at break should be more than 15%.

No.	Structural project	Unit	Requirement
Cable Forming	Filling material	1000D/pc	PP 4±1
Cable Forming	Cable Forming	Polyester tape	mm	0.025±0.005
External protection	Material	-	Polyvinyl chloride PVC
		Average thickness of sheath	mm	0.8±0.1
		Finished outer diameter	mm	6.1±0.2
wire gauge			AWG	18
Conductor DC resistance max.			20℃-Ω/km	≤19.5
