Drawer Type Quick Connector Assembly with UPC≥50dB Return Loss SC Fast Connector

Name: Drawer Type Quick Connector Assembly with UPC50dB Return Loss SC Fast Connector
Brand: Fibconet SC Fast Connector
Price: 0.30 USD

China Drawer Type Quick Connector Assembly with UPC≥50dB Return Loss SC Fast Connector wholesale

Model Number : fiber optic fast connector

Type : SC Fast Connector

Place of Origin : Zhejiang, China

Brand Name : Fibconet SC Fast Connector

Use : FTTX SC Fast Connector

Warranty Time : 2 YEARS SC Fast Connector

Network : TCP, GPRS, wifi

Model NO. : SC - Drawer Type Quick Assembly Fast Connector

Application : Fiber Distribution Frame, Network Equipment, Fiber Module

Light Source TYPE : Laser SC Fast Connector

Insertion Loss (dB) : AVG ≤0.3 DB, MAX ≤0.5 DB SC Fast Connector

Return Loss (dB) : UPC≥ 50dB APC≥ 55dB SC Fast Connector

Operating Temperature : -20 ~ +75℃ SC Fast Connector

Storage Temperature : -40 ~ +85℃ SC Fast Connector

Cable diameter Range : Drop cable 2.0*3.0/2.0*5.0mm SC Fast Connector

Keywords : SC Fast Connector

Keywords 1 : fiber optic fast connector

Packaging Details : SC fiber optic fast connector /Blister box and carton box

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 500 boxes

Price : $0.30/boxes 500-4999 boxes

Contact Now

Product Overview

Quick Assembly SC Fast Connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability.

Drawer Type Quick Connector Assembly with UPC≥50dB Return Loss SC Fast Connector

SC Fast Connector Features:

1,Compatible with both 3mm drop cable and 3x2mm flat cable
2,Fast and easy installation (within the 90s)
3,Adopted fiber pre-installed structure.
4,Low insertion loss. High return loss.
5,Pressing position use newly special structure design, without infusion, grind and waste material.
6,Use embedded fiber type structure, ensuring the high installation quality, success rate, and quick installation.

SC Fast Connector Application:

--Premise environments ;
--Connections at the desk for LAN environments;
--Patch panels;
--Direct equipment termination;
--Fiber to the Subscriber (FTTx) applications;
--Repair/replacement requirements ;
--Equipment test leads.

Parameters	Specifications
Tensile strength	F>50N
Cable diameter Range	Drop cable 2.03.0/2.05.0mm
Operating Temperature	-20 ~ +75℃
Length	55mm
Storage Temperature	-40 ~ +85℃
Insertion Loss	AVG	MAX
Return Loss	≤0.3dB	≤0.5dB
		UPC	APC
		≥50dB	≥55dB
Temperature cycle	AVG≤0.3DB, MAX ≤0.5 DB
Repeatability(500 MatingTimes)	AVG≤0.3DB,MAX ≤0.5 DB

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you!

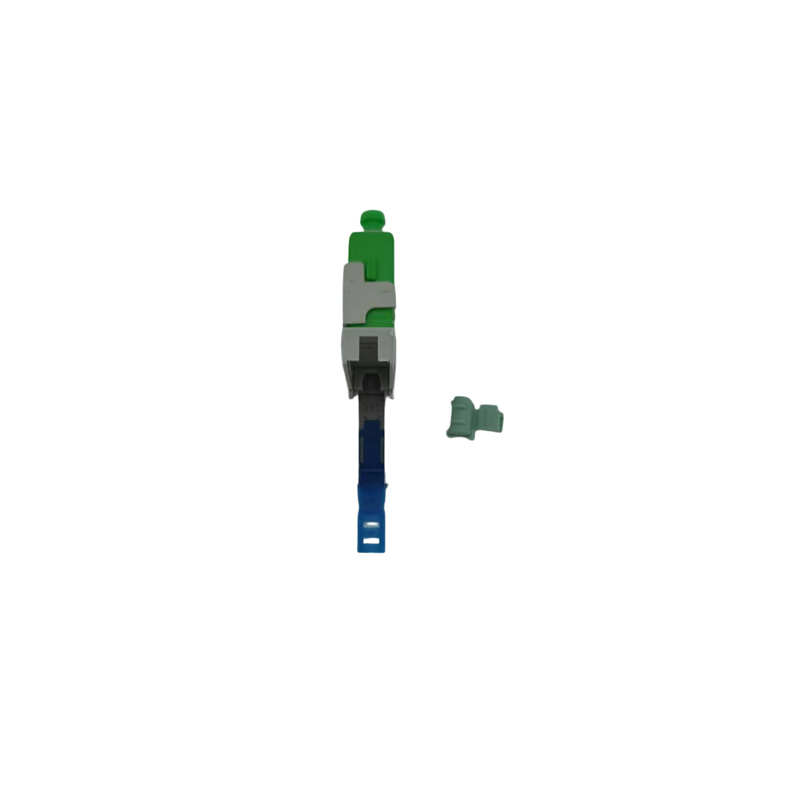

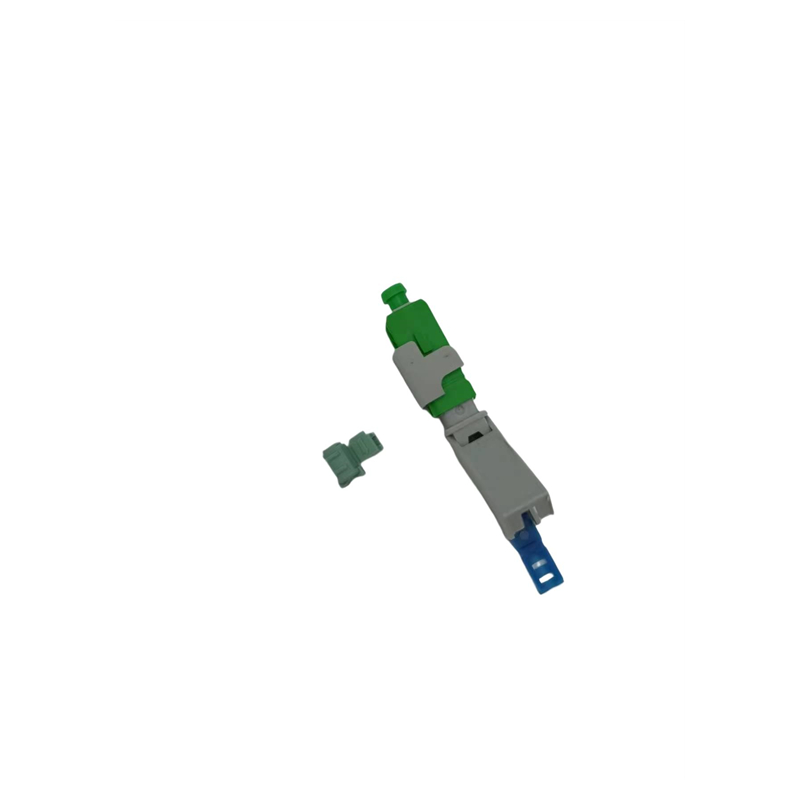

Drawer Type Quick Connector Assembly with UPC≥50dB Return Loss SC Fast Connector Images
